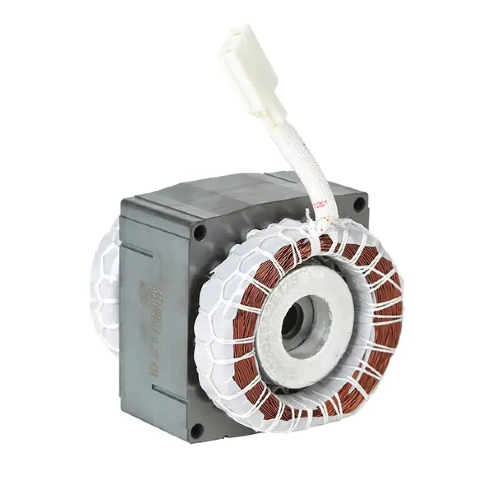

The Refrigeration Compressor Motor is the central component that drives the entire refrigeration process, whether in a household refrigerator, a commercial freezer, or an industrial cooling unit. Essentially, this motor converts electrical energy into mechanical motion to power the compressor, which circulates refrigerant throughout the system. This cycle is crucial for heat exchange, removing heat from the refrigerated compartment and releasing it outside, maintaining a stable temperature environment for perishable items or industrial processes.
A malfunctioning Refrigeration Compressor Motor can lead to numerous operational issues such as inconsistent cooling, excessive energy consumption, or even a complete system shutdown. Early detection of motor issues is not only important for reducing repair costs but also for preventing potential spoilage of stored goods, maintaining energy efficiency, and extending the lifespan of the refrigeration system.
This article provides a comprehensive, step-by-step guide on how to identify whether a Refrigeration Compressor Motor is failing. We will examine operational signs, electrical indicators, testing methods, and preventive measures to ensure your motor continues to perform reliably over time. By understanding the motor’s role and learning to spot early warning signs, maintenance can become more proactive, improving both reliability and efficiency of refrigeration systems.
To identify signs of failure effectively, it is essential first to understand the purpose and operational principles of a Refrigeration Compressor Motor.
At its core, the Refrigeration Compressor Motor is responsible for converting electrical energy into mechanical motion. This motion drives the compressor, which in turn circulates the refrigerant through the evaporator and condenser coils. This circulation facilitates the heat exchange process, removing thermal energy from the refrigerated space and dissipating it outside the system.
The motor's performance directly impacts the compressor’s efficiency. If the motor operates below its intended parameters—due to overheating, electrical faults, or mechanical wear—the compressor cannot maintain optimal refrigerant flow. This results in temperature fluctuations, increased energy consumption, and premature system wear.
Modern refrigeration systems use different motor types depending on power requirements, operational efficiency, and cost considerations. The most common types include:
Single-phase induction motors: Primarily used in residential refrigeration units due to their simplicity, reliability, and relatively low cost. They operate on household electrical supply and are designed for moderate power loads.
Three-phase induction motors: Typically deployed in larger commercial and industrial refrigeration systems where higher efficiency, greater torque, and reliability are required. These motors provide smoother operation and longer service life under heavy load conditions.
Brushless DC (BLDC) motors: Increasingly adopted in modern appliances for their high efficiency, quiet operation, and energy-saving features. BLDC motors reduce mechanical friction because they do not have brushes, improving reliability and lifespan.
Permanent split capacitor (PSC) motors: These motors are widely used for small-scale appliances, offering consistent performance and moderate starting torque. PSC motors are appreciated for their energy efficiency and quiet operation in smaller refrigeration systems.
Understanding the motor type installed in your system is crucial, as the diagnostic methods, performance expectations, and maintenance procedures vary based on the specific motor design.
Detecting early signs of a failing Refrigeration Compressor Motor is essential for timely intervention. Various physical and operational cues can indicate that the motor requires attention.
A well-functioning motor operates quietly, producing only minimal mechanical or electrical sounds. If you hear persistent humming, buzzing, or rattling noises, it may indicate internal motor problems such as:
Worn or misaligned bearings that increase friction.
Loose rotor or stator components causing vibrations.
Electrical imbalances within windings that result in irregular magnetic fields.
Even minor irregular sounds should be monitored, as continuous operation under these conditions can lead to more severe internal damage.
Overheating is a prevalent symptom of motor distress. Signs include:
Motor housing that is hotter than the typical operating temperature.
Activation of thermal overload protection, leading to frequent automatic shutdowns.
Noticeable odors, such as burning insulation or wiring smell.
Persistent overheating may damage the motor's internal windings and insulation, potentially causing short circuits, reduced efficiency, or complete motor failure. It is crucial to monitor surface temperature regularly and take corrective measures if heat levels exceed recommended limits.
A motor that cannot operate optimally will fail to maintain a consistent temperature, causing the refrigeration system to underperform. Indicators include:
Uneven temperatures in various compartments of the refrigerator or freezer.
Fluctuating cold cycles even when thermostat settings remain constant.
Ice buildup in sections of the evaporator coil due to insufficient refrigerant flow.
Monitoring temperature performance over time can reveal patterns that indicate motor inefficiency or failure.
If your refrigeration unit frequently starts and stops, it may be a result of:
Electrical inefficiencies or improper voltage supply.
Mechanical resistance within the motor or compressor assembly.
Reduced torque output, requiring the system to compensate for insufficient cooling capacity.
Excessive cycling not only stresses the motor but also increases overall energy consumption and shortens the motor's service life.
Electrical symptoms are often clear indicators of a failing motor:
Frequent tripping of circuit breakers or blown fuses.
Variations in voltage supply, leading to unstable motor operation.
Difficulty starting or achieving full operational speed.
Regular electrical monitoring and analysis can help detect early faults before they escalate into total motor failure.
Proper diagnosis of a Refrigeration Compressor Motor ensures that maintenance or replacement actions are accurate and effective.
Begin with a careful visual inspection of the motor and its surrounding components:
Look for dirt, dust, and debris accumulation that can obstruct airflow.
Inspect for signs of corrosion or rust on the motor housing.
Check for loose or damaged wiring, connectors, and insulation.
Ensure all mounting bolts and fasteners are secure.
A visual inspection often uncovers surface-level problems that could lead to electrical or mechanical malfunctions if left unaddressed.
Use a multimeter to verify electrical parameters:
Voltage measurement: Confirm the motor receives proper voltage according to manufacturer specifications.
Current draw measurement: Compare actual amperage against rated values to detect overcurrent or undercurrent conditions.
Abnormal voltage or current readings suggest underlying issues in the motor windings or the electrical supply circuit.
Measuring the resistance of motor windings helps detect internal electrical faults. Below is a reference table for typical winding resistance ranges:
Motor Type | Nominal Winding Resistance | Acceptable Range |
Single-phase Induction | 2–10 Ω | ±10% of nominal |
Three-phase Induction | 0.5–5 Ω | ±5% of nominal |
BLDC | 0.1–1 Ω | ±5% of nominal |
PSC | 1–8 Ω | ±10% of nominal |
Resistance values outside the acceptable range may indicate potential winding shorts, open circuits, or insulation deterioration.
Observe the motor during normal operation:
Verify that it starts smoothly without hesitation.
Check for excessive vibration or abnormal movement.
Confirm that the motor maintains consistent rotational speed and torque.
Operational testing provides a final verification of the motor’s condition and can validate the results obtained from electrical measurements.
Maintaining a Refrigeration Compressor Motor in optimal condition extends its service life and ensures reliable refrigeration performance.
Motor ventilation is critical to preventing overheating:
Maintain at least 5–10 cm of clearance around the motor housing.
Ensure air vents are free of obstruction to allow efficient heat dissipation.
Avoid placing heat-generating equipment near the motor.
Proper airflow helps maintain the motor at a safe operating temperature and prevents thermal stress.
A clean environment reduces motor wear and prevents operational issues:
Remove dust and debris accumulation regularly.
Vacuum motor housing and surrounding areas to prevent airflow obstruction.
Avoid moisture or condensation exposure that can cause corrosion.
A clean environment ensures stable operation and reduces the likelihood of mechanical or electrical faults.
Electrical issues are a leading cause of motor failure:
Tighten loose electrical connections to prevent resistance buildup.
Inspect insulation for wear or cracks and replace damaged components.
Verify that connectors and terminals are free from corrosion.
Maintaining proper electrical connections reduces energy losses and prevents overheating.
Monitoring these parameters can identify early signs of failure:
Use a thermometer to check motor surface temperature during operation.
Observe motor vibration; excessive movement can indicate imbalance or mechanical wear.
Schedule periodic professional monitoring for commercial systems to detect subtle issues.
Consistent monitoring allows proactive maintenance and reduces unexpected downtime.
Professional servicing ensures the motor remains in optimal condition:
Inspect winding integrity and insulation quality.
Lubricate bearings and moving parts as required.
Calibrate voltage and current for accurate and efficient operation.
Regular professional maintenance enhances reliability, extends motor lifespan, and ensures compliance with operational standards.
A Refrigeration Compressor Motor is essential for maintaining reliable and efficient cooling in both residential and commercial systems. Recognizing early signs of a failing motor—such as unusual noises, overheating, inconsistent cooling, frequent cycling, or electrical irregularities—allows us to take timely action, ensuring uninterrupted performance and energy efficiency. Regular inspections, detailed electrical testing, and preventive maintenance are key to extending the motor’s lifespan and optimizing overall system reliability.
For those seeking high-quality, durable refrigeration compressor motors and expert guidance, we recommend exploring the solutions offered by Suzhou Nanxin Electrical Machine Co., Ltd. Their extensive experience in motor design and manufacturing ensures reliable performance, precise engineering, and long-term efficiency. By working with them, we can access a range of products tailored to meet specific refrigeration requirements, as well as professional support to address operational challenges.
Whether upgrading an existing system or designing new equipment, engaging with Nanxin allows us to ensure our refrigeration motors operate at peak performance. For more detailed technical information, product specifications, and consultation on selecting the right motor, we encourage reaching out to their team and discovering how their solutions can enhance the efficiency and reliability of our refrigeration systems.
Q1: How often should I inspect my Refrigeration Compressor Motor?
A1: Conduct visual inspections and check electrical connections every 6–12 months to maintain optimal motor performance.
Q2: Can a noisy motor still work properly?
A2: Some minor mechanical or electrical noise is normal, but persistent humming, buzzing, or rattling usually indicates a problem requiring inspection.
Q3: What tools are necessary for testing a Refrigeration Compressor Motor?
A3: Essential tools include a multimeter for voltage and current checks, a thermometer for surface temperature measurement, and access to electrical schematics for accurate testing.
Q4: Is it safe to operate an overheating motor?
A4: No. Overheating can damage the motor and other refrigeration components. Immediate inspection is recommended to prevent further damage.
Q5: How does preventive maintenance improve motor lifespan?
A5: Regular cleaning, ventilation checks, vibration monitoring, and professional servicing reduce wear, improve efficiency, and enable early detection of issues.
Q6: Can resistance checks be applied to all refrigeration motors?
A6: Yes, but always refer to manufacturer specifications for acceptable resistance ranges, as they vary by motor type (single-phase, three-phase, BLDC, PSC, etc.).
Q7: How can I identify unusual cycling patterns in my motor?
A7: Monitor the system’s start-stop cycles. Excessive or irregular cycling compared to normal operating conditions may indicate a motor or compressor issue.
