English Views: 0 Author: Site Editor Publish Time: 2026-03-18 Origin: Site

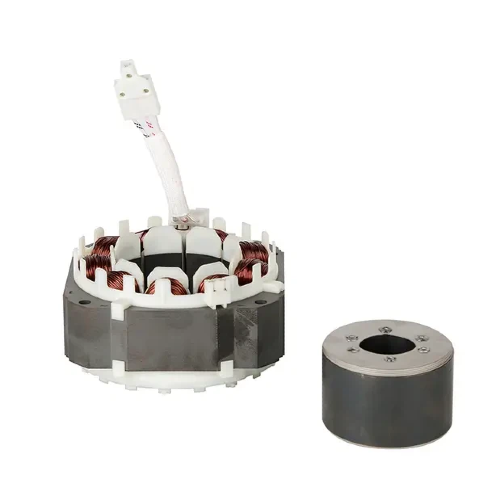

The Refrigeration Compressor Motor is the heart of any refrigeration system, whether it is a household refrigerator, commercial freezer, or industrial cooling unit. It drives the compressor, which circulates the refrigerant, enabling cooling throughout the system. Without a properly functioning compressor motor, the refrigeration unit will fail to maintain the desired temperature, leading to inefficiency, spoilage, and potential damage to the appliance.
Testing a Refrigeration Compressor Motor is an essential maintenance step to ensure the longevity and efficiency of your refrigeration system. Regular testing allows you to detect electrical or mechanical issues early, which helps prevent complete system failure and minimizes energy waste. Proper testing also ensures that the motor operates within its optimal electrical parameters, maintaining consistent performance over time.
By understanding the components and operational principles of the motor, users and technicians can perform accurate tests and interpret results correctly. This article provides a comprehensive, step-by-step guide on how to test the motor safely and efficiently, including the necessary tools, techniques, and interpretations of test results. With this knowledge, both professionals and knowledgeable DIY enthusiasts can maintain their refrigeration systems at peak efficiency while extending the motor’s service life.
Before testing a Refrigeration Compressor Motor, it is crucial to understand its structure, types, and operational role. Knowledge of the motor's inner workings not only facilitates accurate testing but also helps in diagnosing potential issues before they affect the overall system.
There are several types of compressor motors used in refrigeration systems:
AC Motors (Alternating Current): AC motors are the most widely used in household and commercial refrigeration. They are reliable, cost-effective, and capable of continuous operation under variable loads. Their simple design makes them easy to maintain, and they provide stable torque for consistent compressor performance.
DC Motors (Direct Current): DC motors are less common but are used in energy-efficient and specialized refrigeration applications. They offer precise speed control, which helps in optimizing cooling cycles and reducing energy consumption. Their performance is particularly beneficial for applications that require variable speed operation.
BLDC Motors (Brushless DC): BLDC motors are increasingly popular due to their high efficiency, low noise, and long lifespan. They reduce energy consumption compared to traditional motors and provide smoother operation with minimal vibration. BLDC motors are ideal for modern refrigerators and commercial cooling systems where performance and quiet operation are critical.
Understanding the type of motor in your refrigeration system is essential because the testing procedure and expected readings may vary slightly depending on the motor type.
A Refrigeration Compressor Motor consists of several essential parts, each playing a vital role in motor operation:
Start Winding: Provides the initial torque required to start the compressor. It is energized only during start-up and disengaged once the motor reaches running speed.
Run Winding: Maintains the motor operation after it has started. It is continuously energized while the motor runs.
Capacitor (if applicable): Improves starting torque and ensures smooth operation by creating a phase shift between start and run windings.
Terminals: Electrical connection points that link the motor to the refrigerator’s power supply. Proper terminal connection is crucial for safe and efficient operation.
Motor Housing: Encloses the motor components and protects them from external environmental factors such as dust, moisture, and mechanical impact.
The Refrigeration Compressor Motor converts electrical energy into mechanical energy, which drives the compressor to compress the refrigerant. The compression of the refrigerant creates a pressure differential, enabling it to circulate through the condenser and evaporator. This process allows heat to be absorbed from the refrigerator interior and released outside, effectively cooling the appliance.
Efficient motor operation ensures that the compressor runs smoothly, which not only maintains the desired temperature but also improves energy efficiency. Any disruption in motor performance can lead to uneven cooling, higher energy consumption, and potential damage to the entire refrigeration system. By regularly testing the motor, issues such as winding degradation, electrical faults, or capacitor failure can be identified early, ensuring reliable operation.
Testing a Refrigeration Compressor Motor involves working with electrical components and mechanical parts, which requires strict adherence to safety protocols. Ignoring safety measures can result in injury or damage to the appliance.
Power Disconnection: Always unplug the refrigerator or switch off the circuit breaker before beginning any tests. This eliminates the risk of electrical shock and ensures safe access to motor terminals.
PPE Use: Use insulated gloves, safety goggles, and non-conductive footwear to protect against accidental contact with live circuits or sharp edges on motor housing.
Cool Environment: Allow the motor and surrounding components to cool down before testing. Testing a hot motor can result in burns or inaccurate readings due to thermal changes in resistance.
Avoid Wet Conditions: Water or high humidity near the motor or electrical tools can cause short circuits or electric shocks. Ensure the testing area is dry and well-ventilated.
Tool Inspection: Check all measuring instruments and tools for insulation integrity, battery charge, and functionality before use. Faulty tools may provide inaccurate readings or pose safety hazards.
These precautions are not just formalities; they are essential for ensuring accurate testing and preventing accidents during the diagnostic process.
To effectively test a Refrigeration Compressor Motor, a few specialized tools are needed. Each tool serves a specific purpose in assessing different aspects of motor health.
Tool | Purpose |
Multimeter | Measures resistance, voltage, and continuity across windings to detect electrical issues. |
Clamp Meter | Measures current draw during operation to ensure the motor is drawing the correct amperage. |
Screwdrivers | Used for safely accessing motor terminals and removing protective covers. |
Insulation Tester | Evaluates the integrity of the windings by measuring insulation resistance. |
Capacitance Meter (optional) | Measures capacitor health to ensure proper motor starting and smooth operation. |
Using these tools in combination provides a comprehensive evaluation of the motor’s electrical and mechanical integrity. A multimeter is indispensable for every test, while optional tools like insulation testers enhance accuracy for more advanced diagnostics.
Visual inspection is the first step before any electrical testing. It allows identification of potential issues that may affect motor performance:
Wiring Condition: Inspect all motor wires for discoloration, fraying, or loose connections. Damaged wires may cause intermittent operation or electrical faults.
Motor Housing: Check for dents, corrosion, or oil leakage, which may indicate mechanical stress or past overheating.
Signs of Overheating: Look for discoloration or burnt odors, which suggest excessive electrical load or insulation breakdown.
A thorough visual inspection often uncovers problems that are easier to detect before electrical testing begins.
The continuity test confirms that electrical paths in the motor windings are intact:
Set the multimeter to continuity or low-resistance mode.
Disconnect the motor from the power supply.
Place the probes across the start and run winding terminals.
A continuous beep or low resistance reading indicates intact wiring.
An open circuit signal suggests a break in the winding that needs attention.
This test ensures that electrical current can flow properly through all parts of the motor.
Resistance measurement verifies the condition of the motor windings:
Set the multimeter to the ohms (Ω) setting.
Measure resistance across start and run windings.
Compare the readings to manufacturer specifications:
Winding Type | Typical Resistance Range (Ω) |
Start Winding | 2–10 Ω |
Run Winding | 10–50 Ω |
Resistance readings outside these ranges may indicate degraded insulation or partial shorts in the winding, potentially affecting motor performance.
Ground faults or shorts can severely damage the motor or connected circuitry:
Set the multimeter to the highest resistance range.
Place one probe on the motor terminal and the other on the motor casing.
Infinite resistance readings indicate no ground faults.
Low resistance readings may indicate insulation breakdown, requiring corrective action.
Many motors include a start capacitor that assists in generating sufficient torque:
Disconnect the capacitor from the motor circuit.
Set the multimeter or capacitance meter to measure capacitance.
Compare the measured value to the rating printed on the capacitor.
Values within ±10% indicate a healthy capacitor.
A well-functioning capacitor ensures smooth motor startup and stable continuous operation.
If safe and practical, an operational test can validate motor performance:
Power the motor with safety precautions in place.
Listen for consistent, smooth rotation.
Observe for unusual vibrations or sounds, which could indicate misalignment or mechanical resistance.
Operational testing complements electrical testing and provides a more complete assessment of the motor’s health.
After performing the tests, interpreting results correctly is essential:
Normal Readings: Proper continuity, expected resistance values, no ground faults, and a healthy capacitor indicate a fully functional Refrigeration Compressor Motor.
Abnormal Signals: Any deviations from standard readings suggest that maintenance or professional evaluation may be required.
Capacitor Health: Accurate capacitance readings ensure smooth starting and proper torque generation.
Interpreting these results allows for early detection of issues, helping to maintain cooling efficiency and prolong motor lifespan.
Proper maintenance of the Refrigeration Compressor Motor ensures consistent performance and longer service life:
Schedule regular inspections at least once per year.
Keep the motor housing and surrounding area clean, dry, and well-ventilated.
Tighten electrical connections and check for corrosion.
Ensure capacitors are tested or replaced periodically.
Avoid overloading the motor with excessive refrigerant pressure or voltage fluctuations.
Routine maintenance not only enhances motor longevity but also contributes to energy-efficient operation and overall appliance reliability.
Testing a Refrigeration Compressor Motor is essential for maintaining reliable and efficient cooling performance. Through careful visual inspections, continuity and resistance measurements, ground fault checks, and capacitor verification, we can accurately assess the condition of the motor and ensure it operates at peak efficiency. Regular testing, combined with proactive maintenance, not only prevents unexpected downtime but also enhances energy efficiency and extends the motor’s service life.
To achieve consistent and high-quality results, we rely on trusted expertise and advanced solutions from leading manufacturers. Suzhou Nanxin Electrical Machine Co., Ltd. provides a wide range of high-performance refrigeration compressor motors and technical support for all testing and maintenance needs. By consulting their specialists, we can gain deeper insights into motor selection, testing best practices, and long-term reliability strategies. Whether we are upgrading equipment, optimizing energy consumption, or ensuring continuous operation, connecting with a professional supplier like Suzhou Nanxin ensures confidence in every refrigeration system we manage.
Q1: How often should I test my refrigerator compressor motor?
A: Routine testing at least once every 12 months is recommended to maintain optimal motor performance and prevent unexpected failures.
Q2: Can I test a BLDC compressor motor the same way as an AC motor?
A: Most steps are similar, but always refer to manufacturer specifications for resistance, voltage ratings, and operational limits to ensure accuracy.
Q3: What should I do if the motor shows abnormal readings?
A: Double-check the measurements and, if abnormalities persist, seek professional evaluation for maintenance or replacement.
Q4: Is it safe to test the compressor motor while it is still inside the refrigerator?
A: Yes, as long as the power supply is disconnected and all safety measures are observed. Avoid touching live terminals.
Q5: Do I need specialized tools to test the motor?
A: A multimeter is essential, while clamp meters, insulation testers, and capacitance meters are optional but enhance testing accuracy.
Q6: How does proper testing impact energy efficiency?
A: Accurate testing ensures the motor operates optimally, reducing unnecessary energy consumption and maintaining stable cooling performance.
Q7: Can I maintain the motor myself or should I hire a professional?
A: Basic inspections and electrical testing can be done by trained users, but complex diagnostics, repairs, or replacement should be performed by certified technicians.
Q8: What are the key signs of a healthy compressor motor during operation?
A: Smooth rotation, consistent sound levels, minimal vibration, and stable current draw indicate a properly functioning Refrigeration Compressor Motor.
